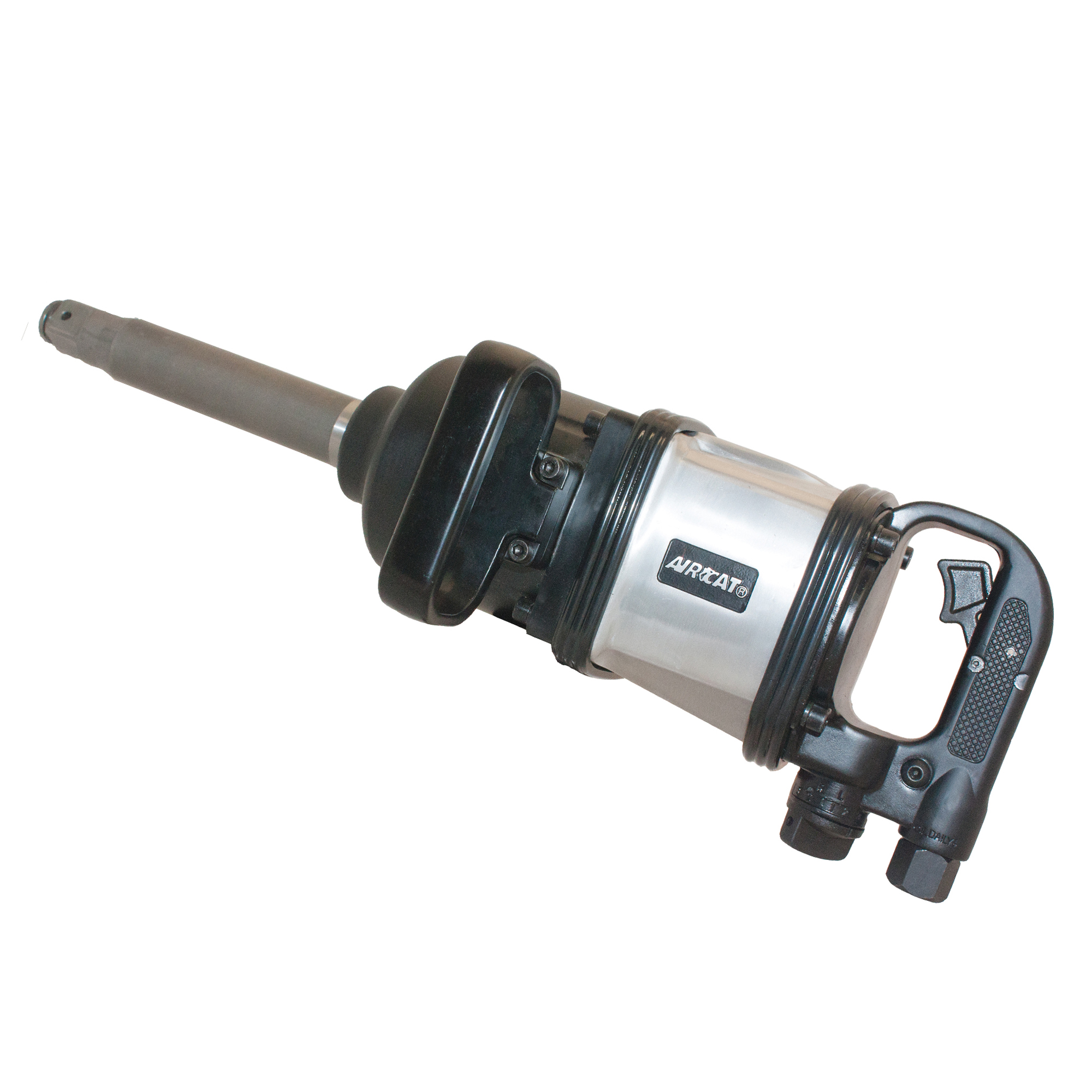

AIRCAT 1″ SUPER DUTY STRAIGHT IMPACT WRENCH WITH 8″ EXTENDED ANVIL

Model# 1994

Provides 2,300 ft-lb maximum torque and 2,500 ft-lb of loosening torque and low maintenance pin-less hammer provides ultimate reliability and added hitting power.

Fact Sheet

REQUEST INFO

PARTS MANUAL

Product Details

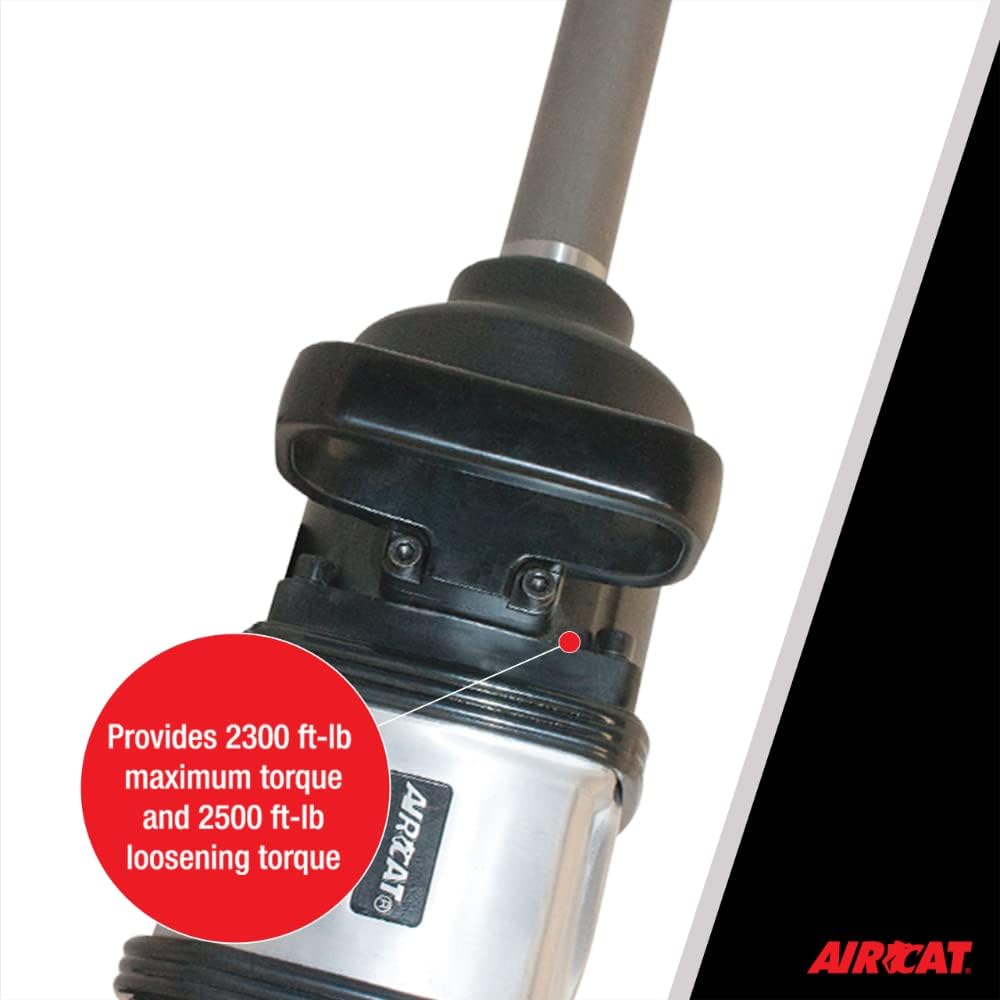

Provides 2,300 ft-lb maximum torque and 2,500 ft-lb of loosening torque

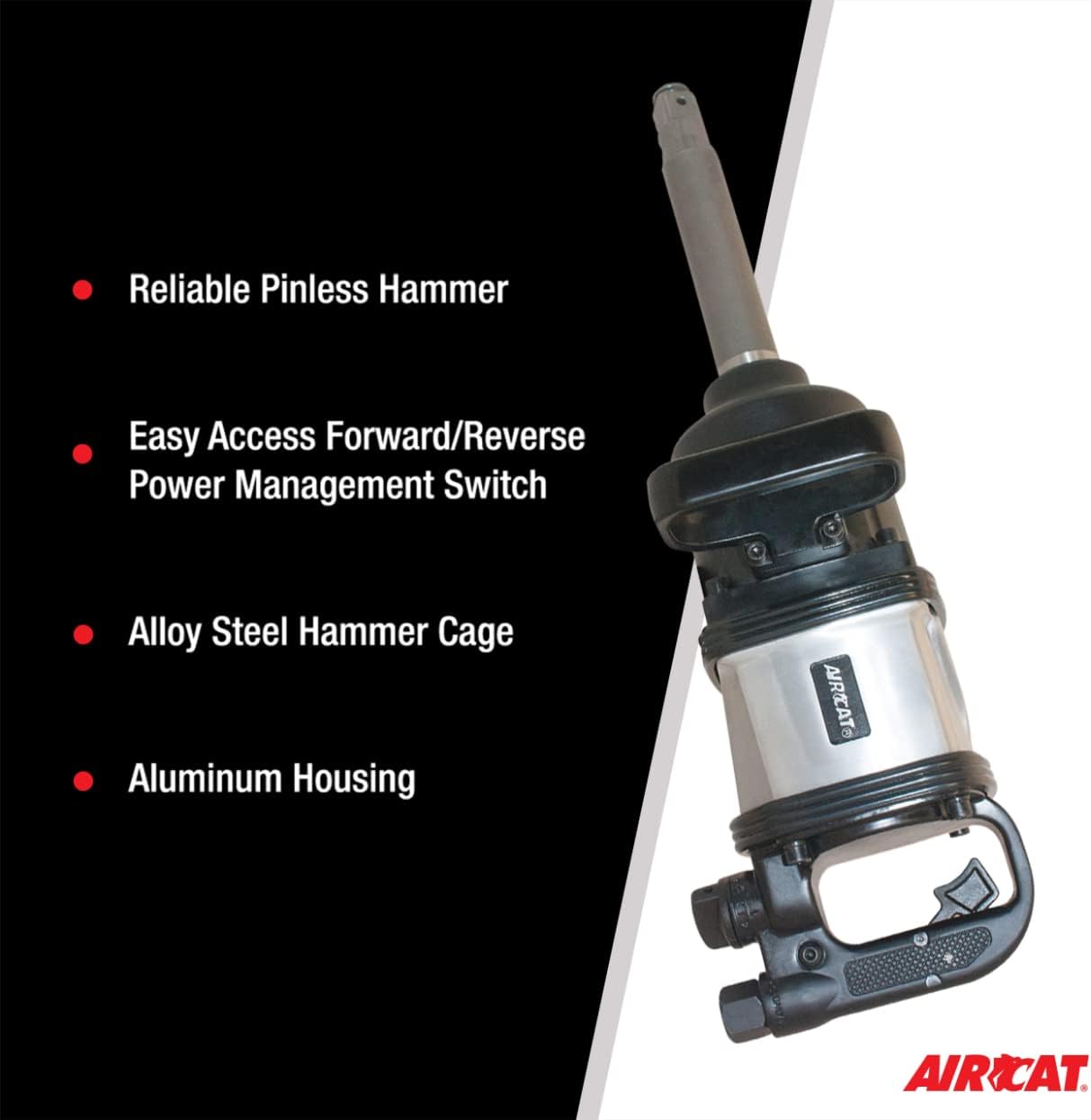

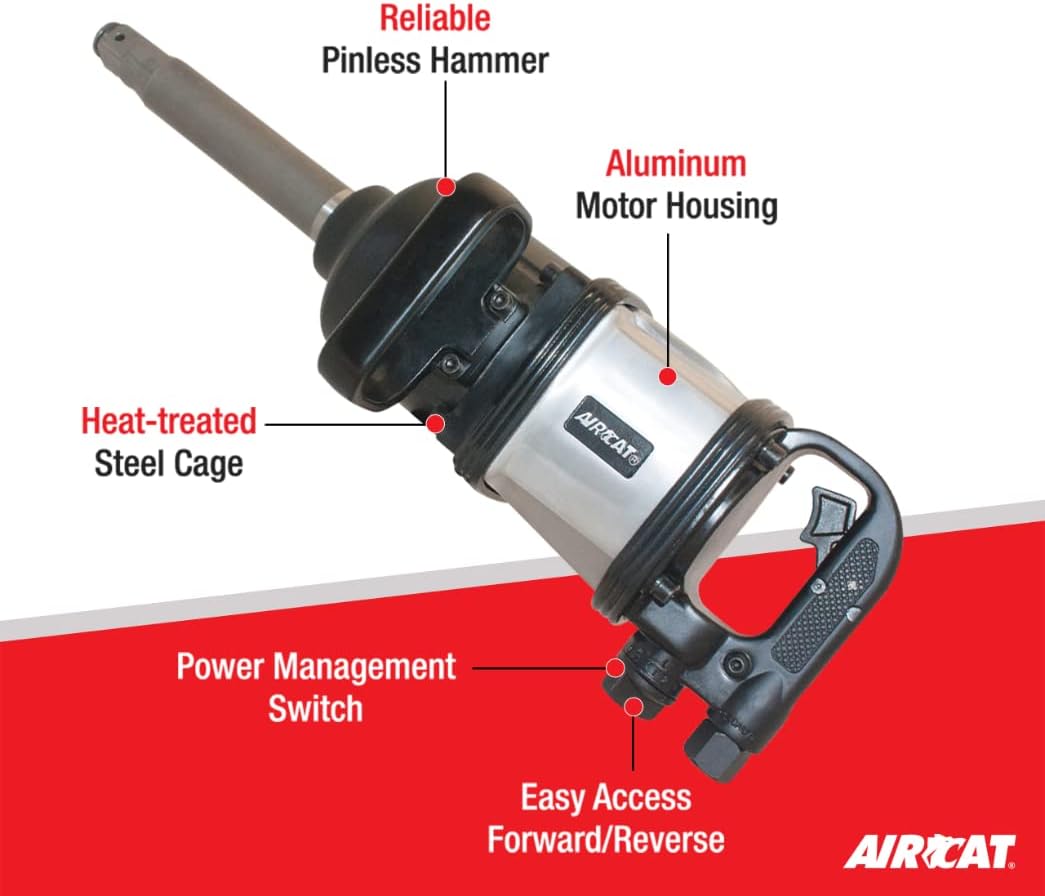

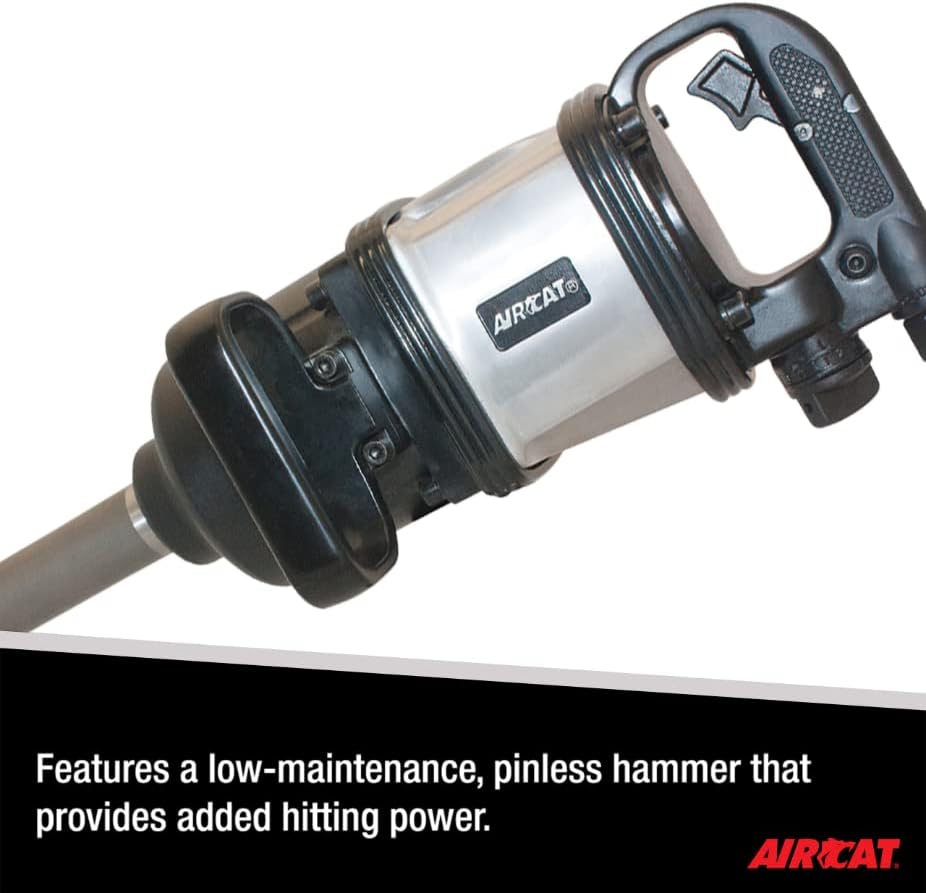

Low maintenance pin-less hammer provides ultimate reliability and added hitting power
Combined forward/reverse and power management switch
Triple heat treated alloy steel hammer cage and anvil
Rugged construction with reliable bolt-on assist side handle
Hammer case can be repositioned for the side handle to be on right or left side
Brushed aluminum motor housing
AIRCAT’s most reliable 1″ Impact Wrench
Combined through hole and friction ring socket retainer

Specifications

Square Drive (in.)	1 x 8-in.
Air Cons. (CFM)	16
Bolt Capacity (in)	1-1/4-in.
Air Inlet (in.) NPT/BSP	1/2-in.
Rec. Hose Size (in.)	1/2-in.
Weight (lbs.)	8.60
Length (in.)	26.00
Free Speed (RPM)	4, 500
Impacts Per Minute (IPM)	1100
Max. Torque (ft-lb)	2300
Loosening Torque (Ft-Lbs)	2, 500
Noise dBA	109
Vibration m/sec2	109.0
