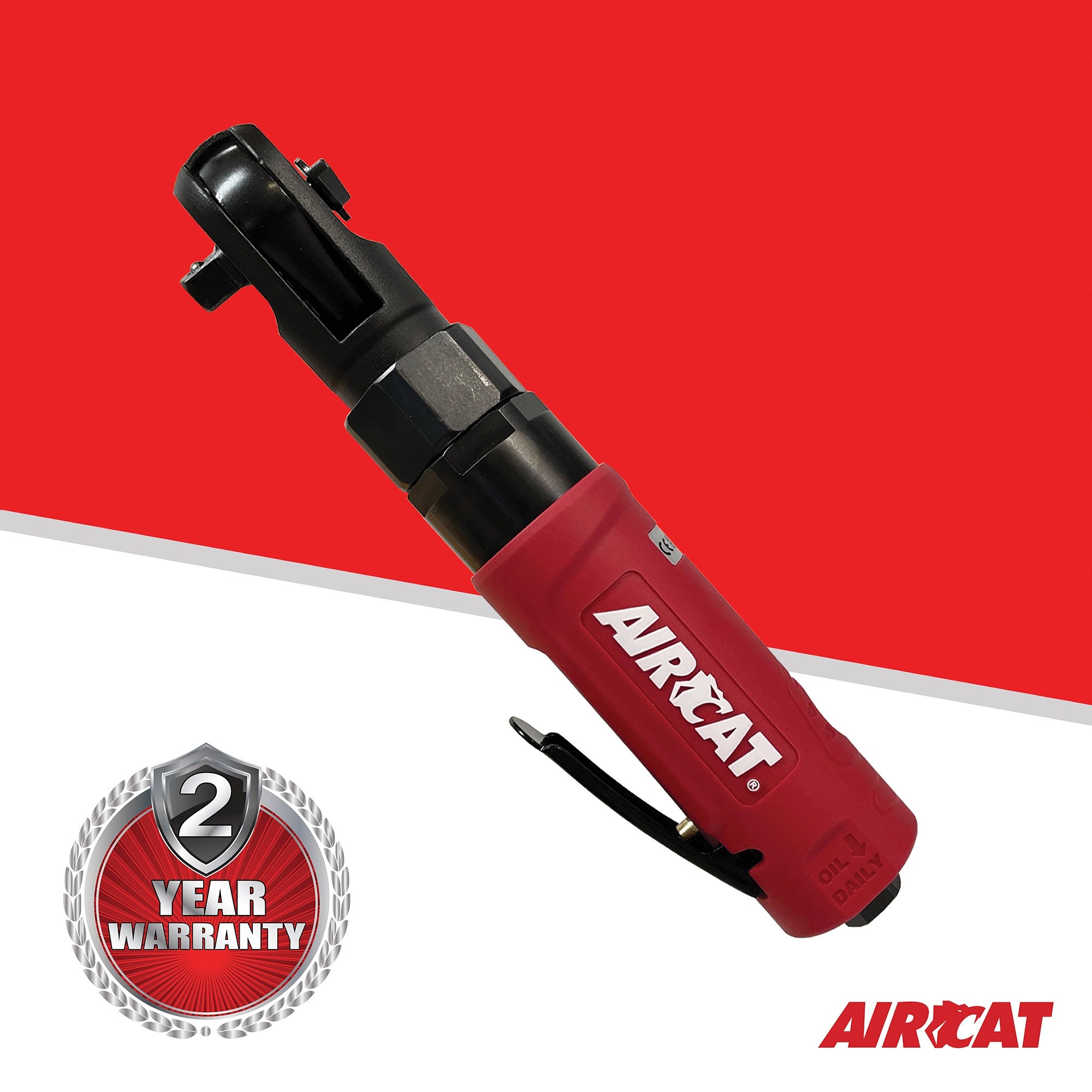

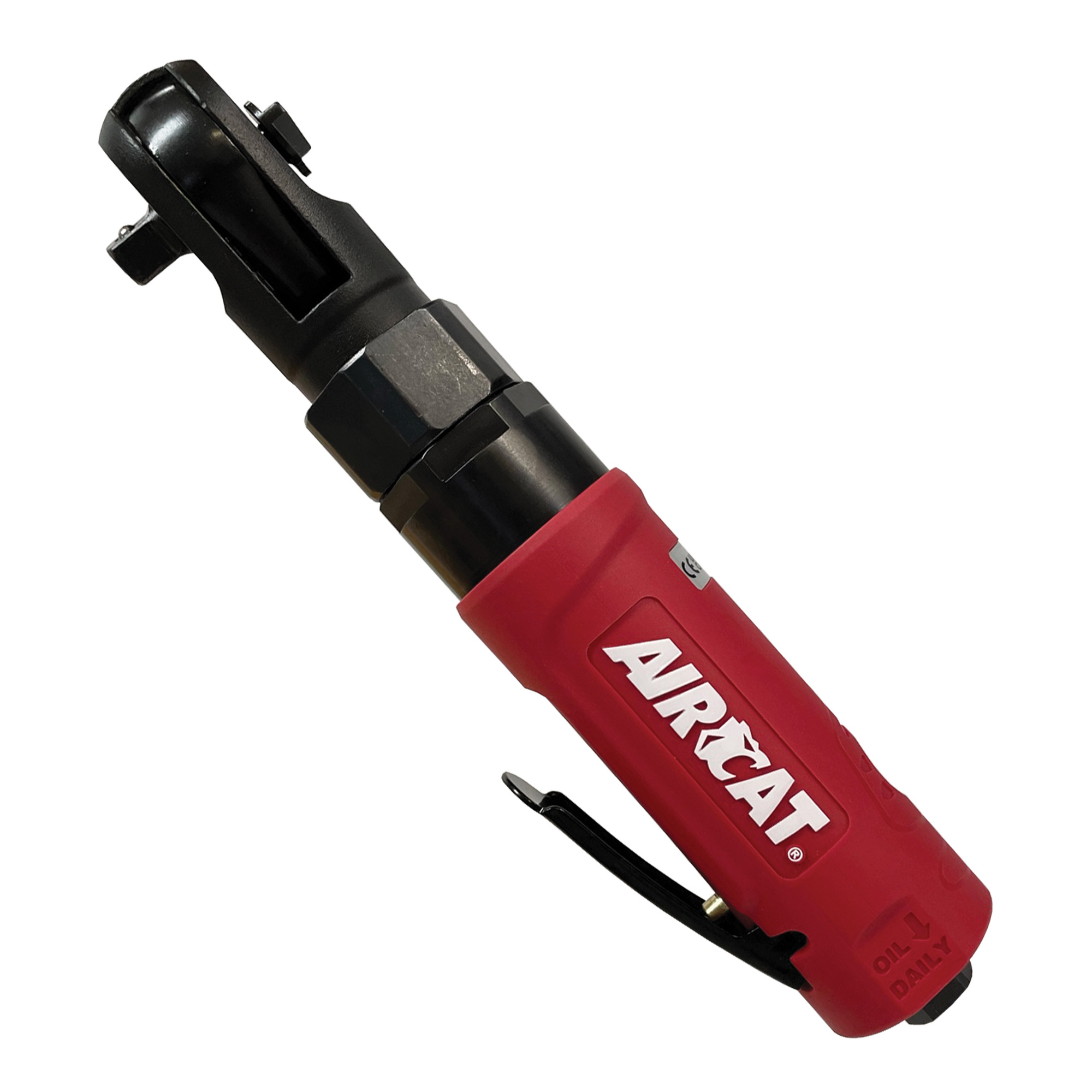

AIRCAT 3/8″ Impacting Ratchet Wrench

Model# 812-RW

AIRCAT 812-RW 3/8-inch reaction-less ratchets feature an internal impact mechanism that eliminates torque reaction and risk of finger trapping. Each air tool delivers 80 ft-lbs of maximum torque and 350 RPM Free Speed.

Fact Sheet

REQUEST INFO

PARTS MANUAL

Product Details

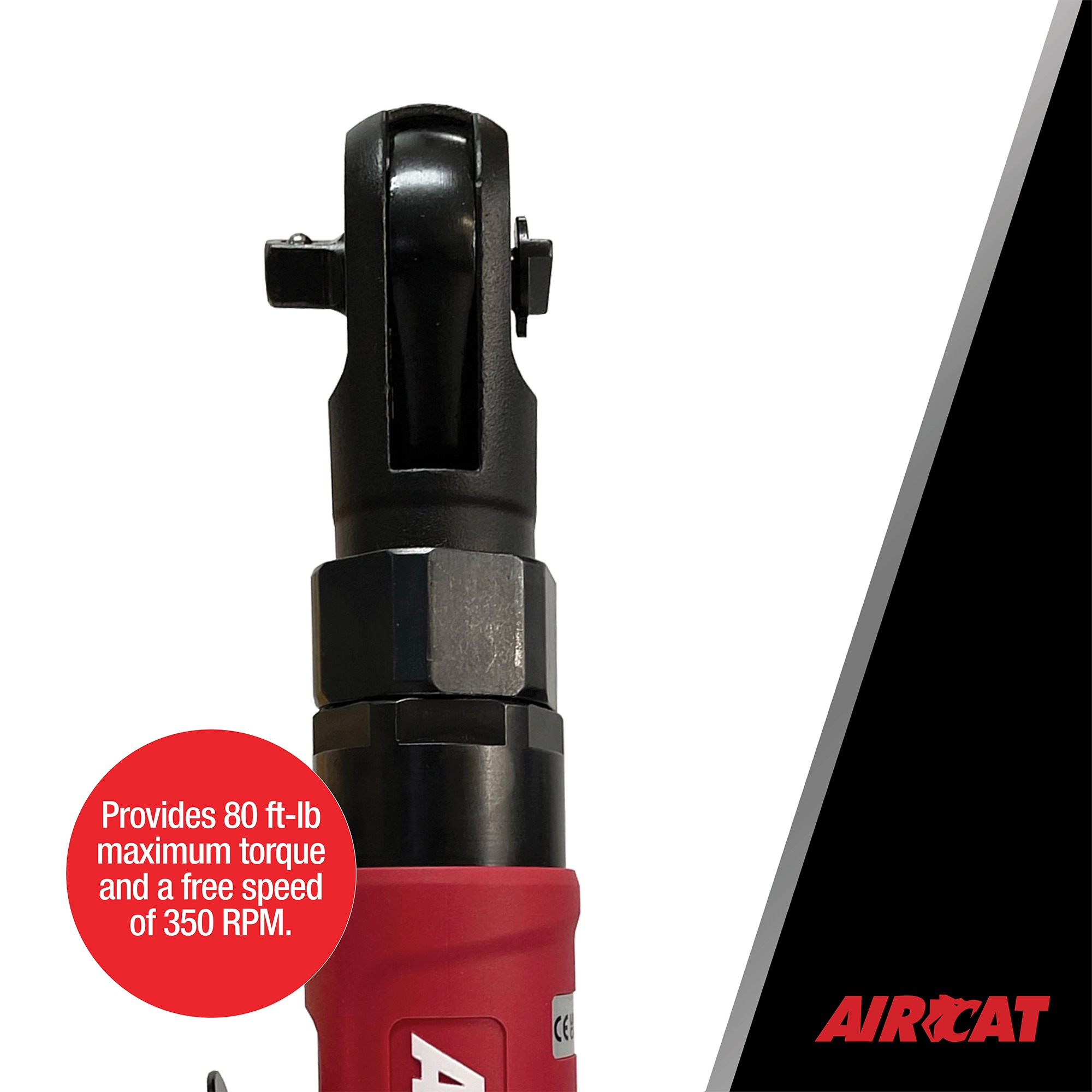

80 ft-lb Maximum torque
350 RPM run-down speed with built-in regulator for control

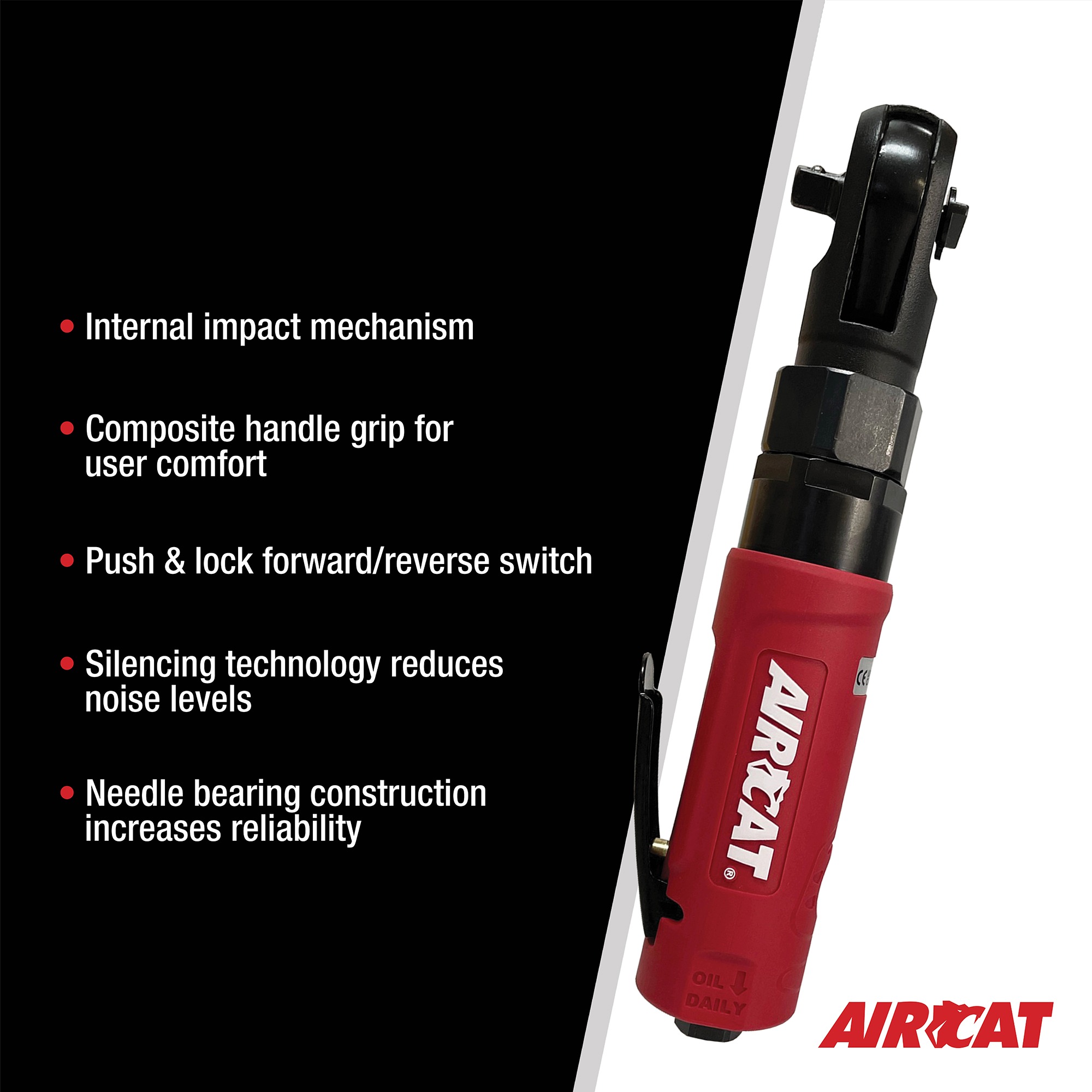

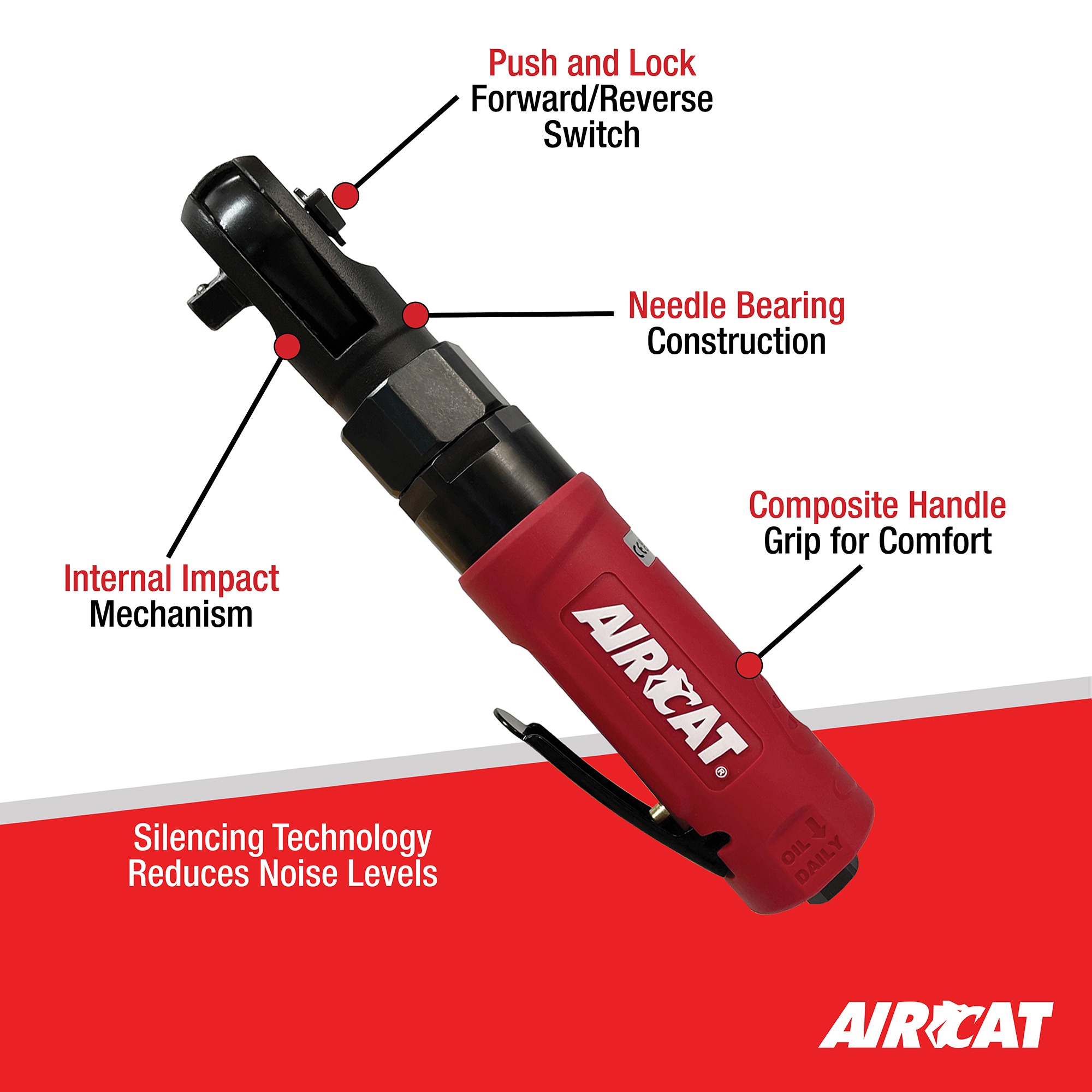

Internal impact mechanism eliminates torque reaction and risk of finger trapping
Very quiet compared to conventional air ratchets – only (79 dBA)

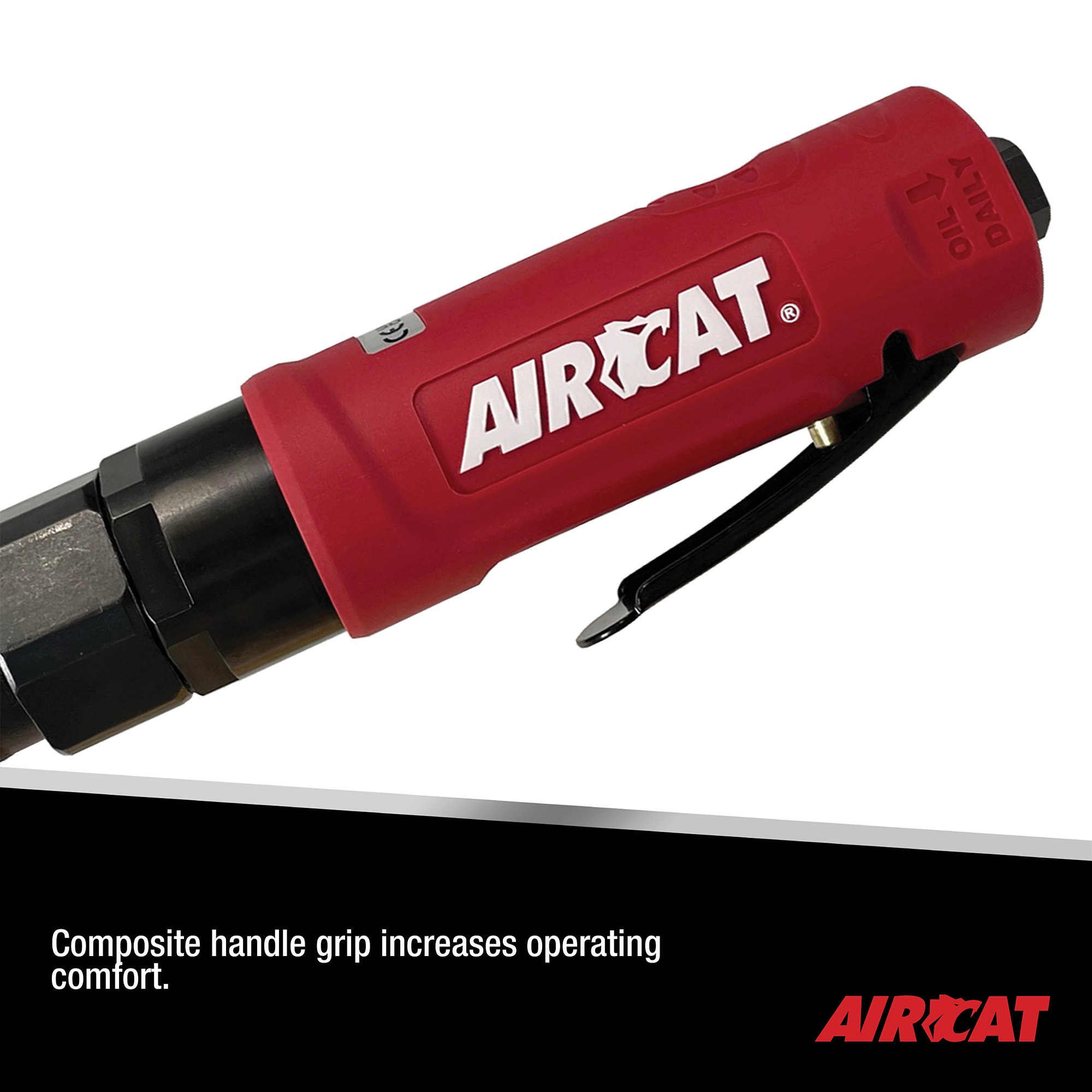

Composite handle grip increases operating comfort
Needle bearing construction increases reliability
Push and lock forward/reverse switch

Specifications

Square Drive (in.)	3/8-in.
Air Cons. (CFM)	4
Bolt Capacity (in)	1/2-in.
Air Inlet (in.) NPT/BSP	1/4-in.
Rec. Hose Size (in.)	3/8-in.
Weight (lbs.)	2.9
Length (in.)	10
Free Speed (RPM)	350
Working Torque (ft-lbs)	12-55
Max. Torque (ft-lb)	80
Noise dBA	88.0
Vibration (m/sec2)	5.7
